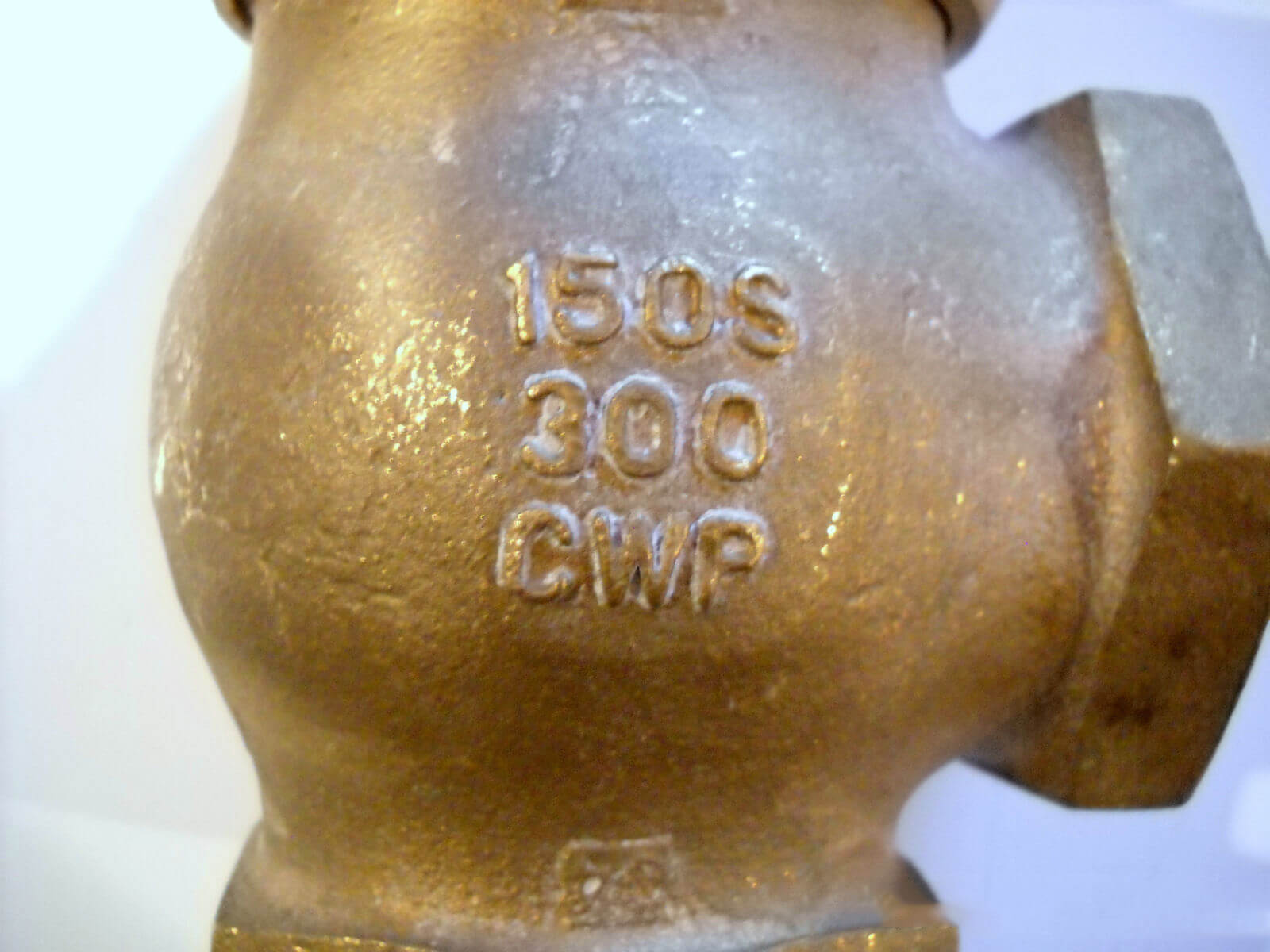

Class 150 Bronze Angle Valve

Material: Bronze
Class: 150">

Item: Bronze Angle Valve
Manufacturer: AQUA-MIGEN
Fig No.: B-220
Size: 1-1/2"
Material: Bronze
Class: 150

Quantity:

Share this:

Inquire Add To Basket

Model: CMECAV8
Brand: AQUA-MIGEN
Code: 8481804090

Product Description
Parts & Material
Working Pressure
FAQ

Description

300 psi/20.7 bar saturated steam to 421°F/216°C, 600 psi/41.4 bar non-shock cold working pressure, Integral seat, Union bonnet, Renewable bronze semi-plug, Class 300 threaded end connections

Size range 1/4" to 3"

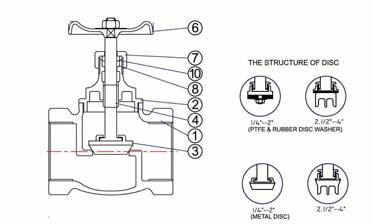

1 Body: Cast Bronze

2.Bonnet: 1/4'' ---1/2'' Brass 3/4''--2'' Cast Bronze

3.Disc: 1/4''---1'' Brass 1-1/4'' ----2'' Cast Bronze

4.Stem: Brass

6.Hand Wheel: Cast Iron

7.Packing Nut: Brass

8.Gland Packing: PTFE

10.Gland: 2''-4'' Brass

3R Seat Ring(option): 1/4''--2'' N.B.R.

3F: 1/4''---4'' PTFE

Working Pressure (Non Shock) Test Pressure

Staurated Steam: 150

Cold water,Oil,Gas: 300

Shell: 450

Seat: 80

1.Is it in stock

Pls contact us and it according to your detail products model

2.Can you speed up delivery?

If ou produce line is not very busy we can speed up delivery for you

3.Can you supply the sample ?

We can supply the sample if we have stock

4.Do you have agent ?

We haven't agent ,but we have sales central in Spain and Germany

5.Can we to be your agent ?

It according to your purchase qty per year

6.The produce process

Inquire—offer—Invoice—drawing confirm—mass production—SGS Test report confirm–Delivery
