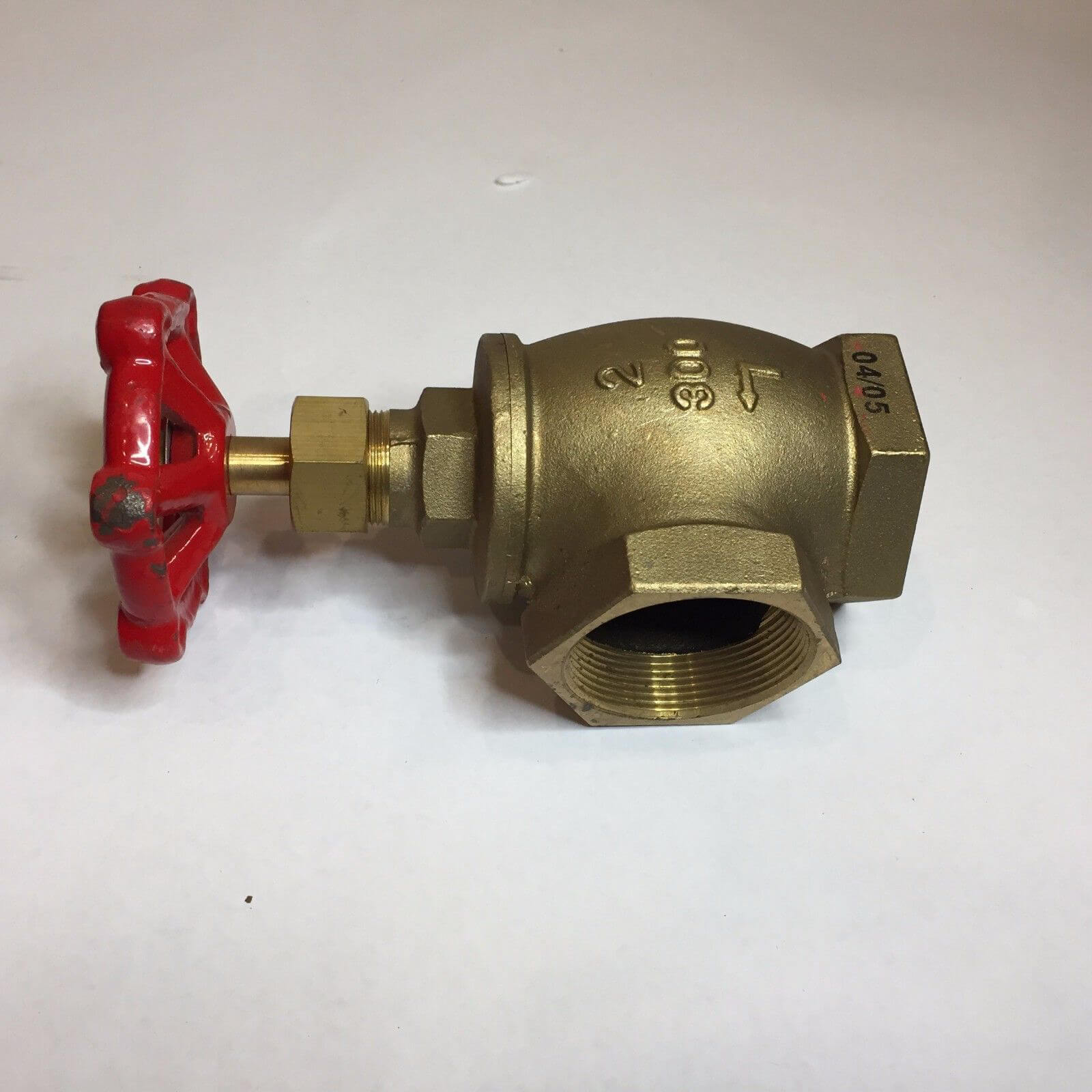

2" BRONZE THREADED ANGLE GLOBE VALVE 2" BRONZE THREADED ANGLE GLOBE VALVE

Item: Bronze Angle Valve
Manufacturer: AQUA-MIGEN
Fig No.: B-220
Size:2''
Material: Bronze
Class: 150

Quantity:
Share this:
  • Model: CMECAV9
  • Brand: AQUA-MIGEN
  • Code: 8481804090
  • Product Description
  • Parts & Material
  • Working Pressure
  • FAQ

2" BRONZE THREADED ANGLE GLOBE VALVE
Product Features:

  • Angle Globe Valve, Class Class 300, Pipe Size 1-1/2", Connection Type FNPT, Body Material Bronze,

  • Top of Handle to Inlet Center 2-1/4", Inlet to Outlet Length 7-1/2", Max. Water Pressure 600 psi, Max.

  • Steam Pressure 300 psi, Max. Fluid Temp. 550 Degrees F, Stem Material Bronze, Bonnet Style Union,

  • Handle Material Malleable Iron, Handle Type Hand Wheel, Standards MSS-SP-80

  • Condition:
    New without Factory Packaging
    Model:
    564G
    Size:
    2 IN
    Other:
    NPT
    Body Material:
    Bronze
    Mounting Type:
    Threaded
    Shipping Weight:
    4 lbs
    Shipping Dimensions:
    6.50 x 4 x 3.25 in
    SKU:
    D561026
    Category:
    Valves · Globe Valves
    Additional Notes:
    ANGLE

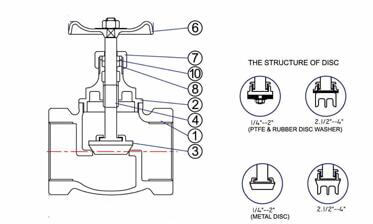

1 Body:     Cast Bronze

2.Bonnet:   1/4'' ---1/2'' Brass 3/4''--2'' Cast Bronze

3.Disc:        1/4''---1'' Brass  1-1/4'' ----2''  Cast Bronze

4.Stem:         Brass

6.Hand Wheel:   Cast Iron

7.Packing Nut:     Brass

8.Gland Packing:   PTFE

10.Gland:              2''-4'' Brass

3R  Seat Ring(option):        1/4''--2'' N.B.R.

3F:                                        1/4''---4'' PTFE

Working Pressure (Non Shock)   Test Pressure

Staurated Steam:     150

Cold water,Oil,Gas:  300

Shell:                           450

Seat:                            80
1.Is it in stock

Pls contact us and it according to your detail products model

2.Can you speed up delivery?

If ou produce line is not very busy we can speed up delivery for  you

3.Can you supply the sample ?

We can supply the sample if we have stock

4.Do you have agent ?

We haven't agent ,but we have sales central in Spain and Germany

5.Can we to be your agent ?

It according to your purchase qty per year

6.The produce process

Inquire—offer—Invoice—drawing confirm—mass production—SGS Test report confirm–Delivery
