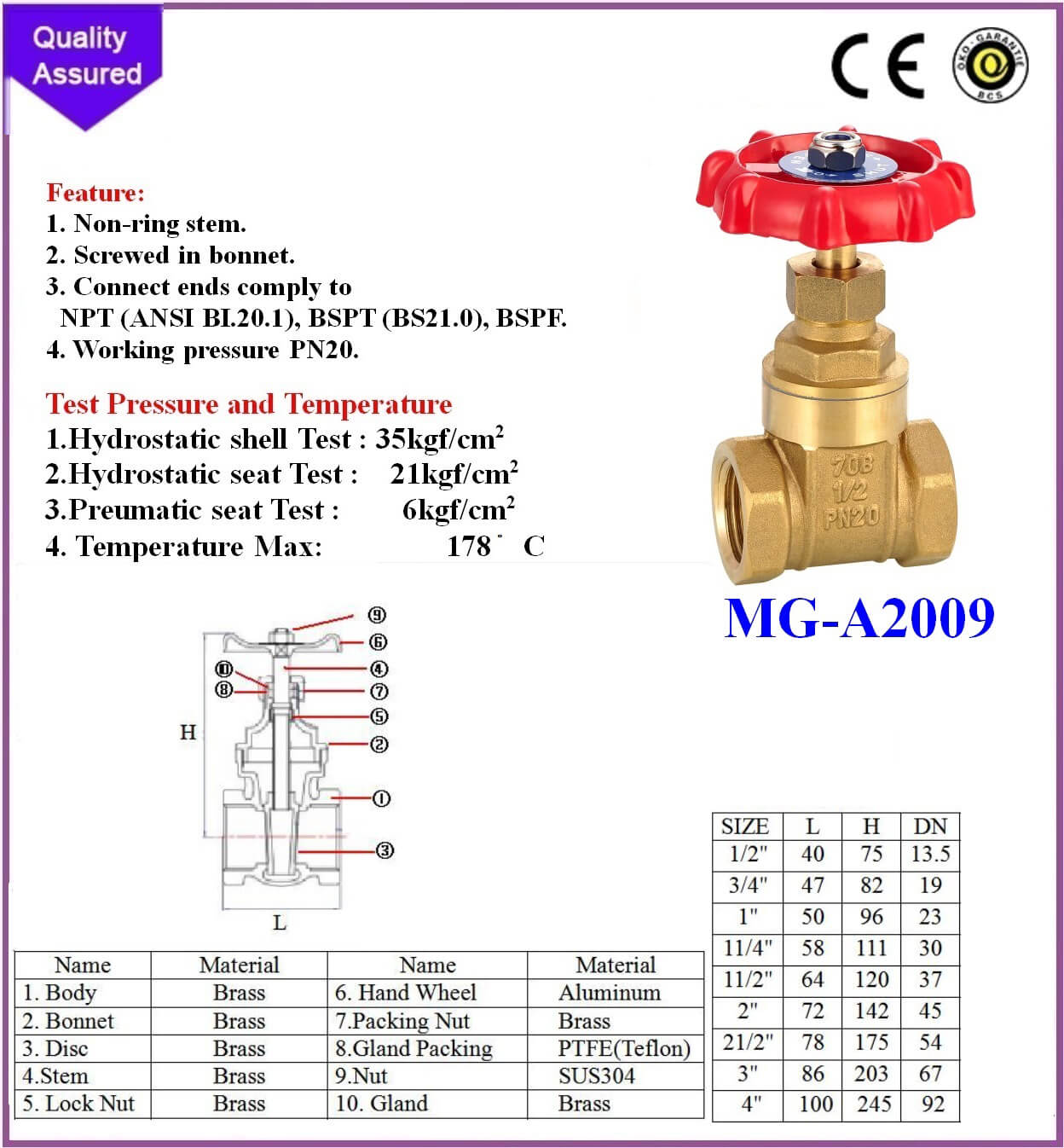

2" Brass Gate Valve - 200WOG, FxF NPT 2" Brass Gate Valve - 200WOG, FxF NPT

1. Non-ring stem.
2. Screwed in bonnet.
3. Connect ends comply to
NPT (ANSI BI.20.1), BSPT (BS21.0), BSPF.
4. Working pressure PN20.
Test pressure and Temperature
1.Hydrostatic sheel Test : 35kgf/cm2
2.Hydrostatic seat Test : 21kgf/cm2
3.Preumatic seat Test : 6kgf/cm2
4. Temperature Max:178∘C

Share this:
  • Model: MG-A2009
  • Brand: AQUA MIGEN
  • Code: 8481804090
  • Product Description
  • Technical Date
  • Quality Control
  • Forge Process
  • FAQ


Gate valves are multi-purpose bi-directional shutoff valves for commercial and industrial applications. To make your selection easier, CMEC offers specification and submittal assistance. Get the assurance of the CMEC warranty, along with superior customer service expertise. Spec a job, find your distributor, get catalogs and submittals, place and track your order.

The Gate Valve is 2'' and BRASS material, Pressure is 200WOG, and FxF NPT,red hanle is can be choice

Work Temperature
Product Name
1.The Production follow the valve standrad strictly

2.Toyota lean Production line used by Aqua aim to improve the quality

3.We test each piece valve during the production ,quality control in forge ,machine ,assemble and all the process in order to guarantee the quality

1.Automactic Forging machine

2.Constant temperature

3.100% Anneal

We replace automatic machine to most  old type of machine so as to make the products better

1.Is it in stock
Pls contact us and it according to your detail products model
2.Can you speed up delivery?
If ou produce line is not very busy we can speed up delivery for  you
3.Can you supply the sample ?
We can supply the sample if we have stock
4.Do you have agent ?
We haven't agent ,but we have sales central in Spain and Germany
5.Can we to be your agent ?
It according to your purchase qty per year
6.The produce process
Inquire—offer—Invoice—drawing confirm—mass production—SGS Test report confirm–Delivery
