Product Category

1-1/2 inch bronze Globe Valve

Quantity:

Share this:

Inquire Add To Basket

Brand: CMEC

Product Description
Parts & Material
Working Pressure
FAQ

Description

Bronze globe valves for use in commercial and industrial applications. Typical services include hot and cold water, HVAC, steam, compressed air, gas and other general utility services.

1.Rising Stem

2.Screwed-in Bonnet

3.Connected ends comply to NPT,BSBT,BSPF

4.NL is also available

125 psi/8.6 bar saturated steam to 366°F/178°C, 200 psi/13.8 bar non-shock cold working pressure, Integral seat, Screw-in bonnet, Renewable bronze seat disc, Class 125 threaded end connections,

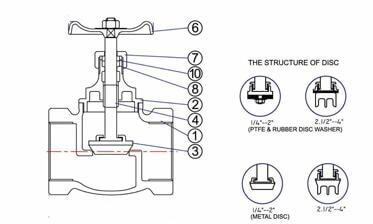

1 Body: Cast Bronze

2.Bonnet: 1/4'' ---1/2'' Brass 3/4''--2'' Cast Bronze

3.Disc: 1/4''---1'' Brass 1-1/4'' ----2'' Cast Bronze

4.Stem: Brass

6.Hand Wheel: Cast Iron

7.Packing Nut: Brass

8.Gland Packing: PTFE

10.Gland: 2''-4'' Brass

3R Seat Ring(option): 1/4''--2'' N.B.R.

3F: 1/4''---4'' PTFE

Working Pressure (Non Shock) Test Pressure

Staurated Steam: 150

Cold water,Oil,Gas: 300

Shell: 450

Seat: 80

1.Is it in stock

Pls contact us and it according to your detail products model

2.Can you speed up delivery?

If ou produce line is not very busy we can speed up delivery for you

3.Can you supply the sample ?

We can supply the sample if we have stock

4.Do you have agent ?

We haven't agent ,but we have sales central in Spain and Germany

5.Can we to be your agent ?

It according to your purchase qty per year

6.The produce process

Inquire—offer—Invoice—drawing confirm—mass production—SGS Test report confirm–Delivery
