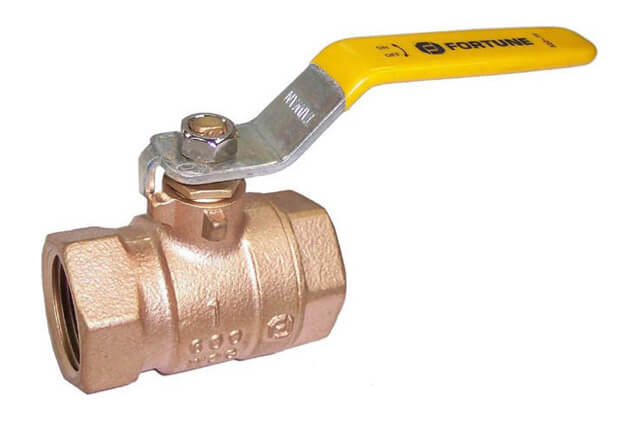

Bronze ball valve
Specification:
1.pressure: 150LB 200LB 300LB
2.Media: sea water, oil, liquefied gas,steam
3.Temperature: water below 120 degree C, oil ,gas ,steam below 220 degree C
4.Tread connection Std: (G ,Rc ,RP) BSP, BSPT ,NPT
Description
A wide selection of CMEC ball valves are available in bronze, brass, lead-free, carbon steel or stainless steel materials. Select the right ball valve in one-piece, two-piece, three-piece, full port, or conventional port. A range of trim material is available. The right end connections to choose from include press-to-connect, threaded, solder or flanged.
To make your selection easier, CMEC offers specification and submittal assistance. You also get the assurance of the CMEC warranty, along with superior customer service expertise. Spec a job, find your distributor, get catalogs and submittals, place and track your order.
This model have Two Piece Quarter-Turn ,bronze material and yellow handle for your choice

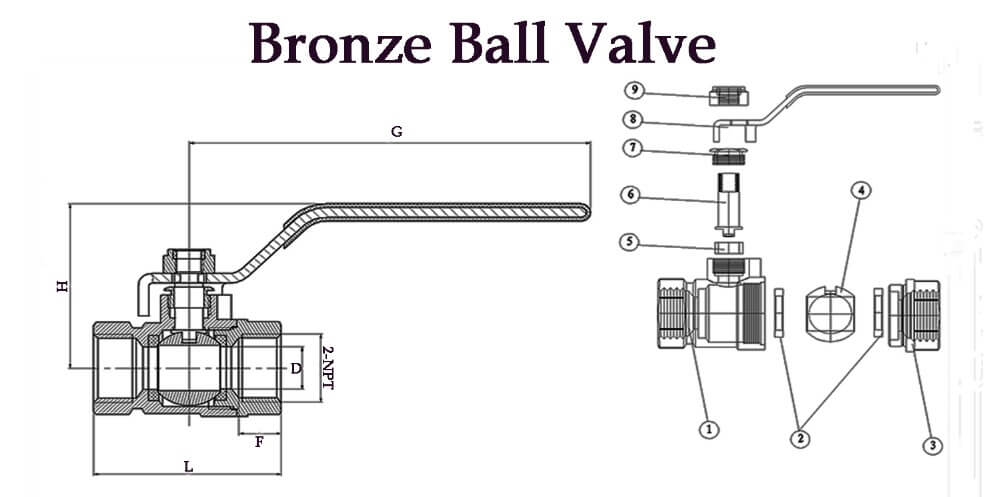

Two Piece Quarter-Turn Bronze Ball Valves
1.CONNECTION TYPE: FXF
2.COMMON BRASS MATERIAL Hpb57-3
3.IRON NUT
4.SURFACE TREATMENT:SAND-BLASTING AND NATURE COLOR IN BODY&THREAD
5.BRAND:AQUA-MIGEN OR OEM
6.THREAD:G BSP NTP
7.HANDLE:IRON HANDLE THROME PLATED ANY COLOR WITH PVC COVER
8.INSET BALL:BRASS
9 PTFE SEATED
10STEM:BRASS
11.FULL PORT
12.PN:16
13.PACKING:PTFE
14.BRASS GLAND NUT ,O-RING
15.long thread
