Flanged gate valves to BS Flanged gate valves to BS

Nominal Pressure PN16
Operating Temperature -10 to +150deg C
Conforming to:
BS21 / NPT Threading
BS EN 1092 / PN16 – Flange drilling
Class ANSI 150
Types: Rising Stem ,Non Rising Stem

Quantity:
Share this:
  • Model: CMECFV2
  • Brand: AQUA-MIGEN
  • Code: 8481804090
  • Product Description

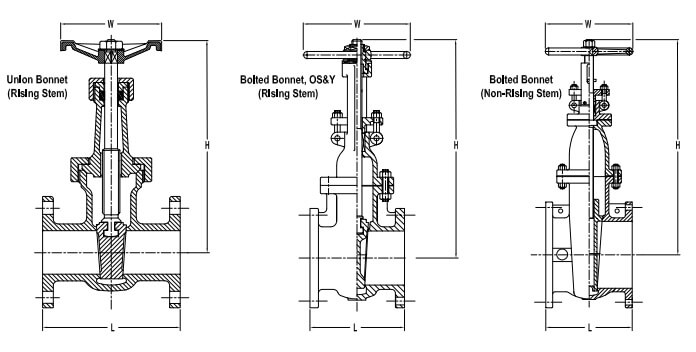

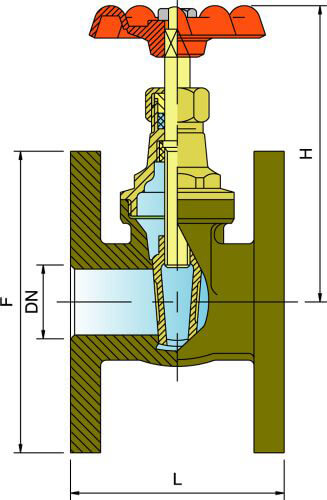

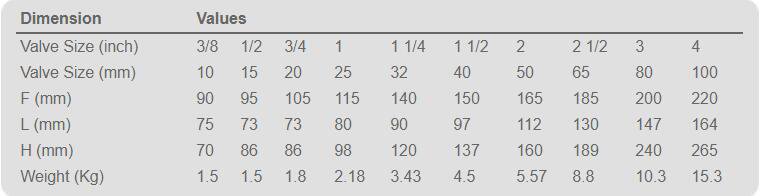

  • Dimensions & Weights
  • Material

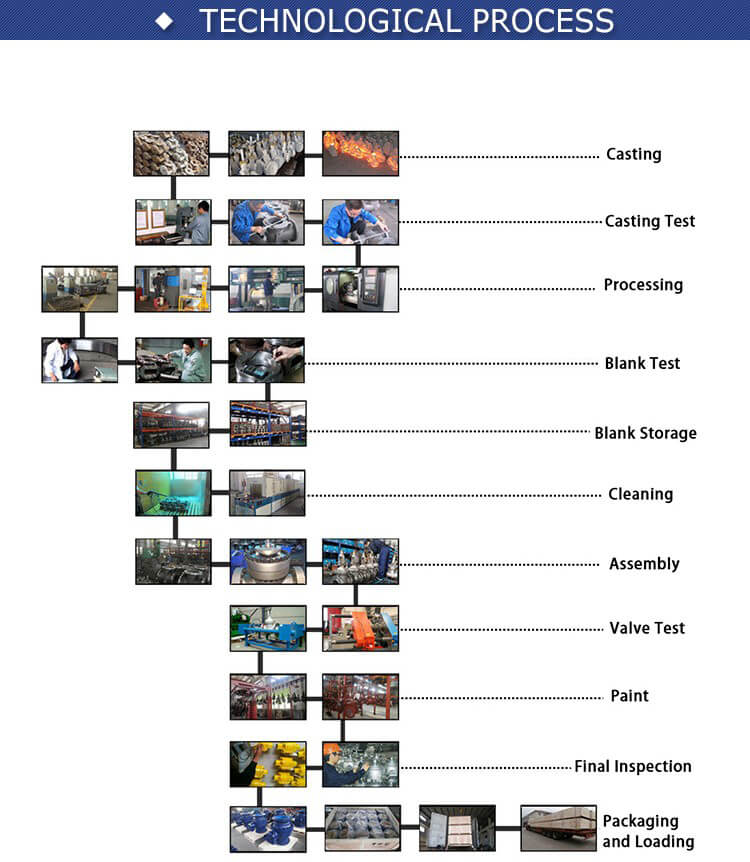

  • TECHNOLOGICAL PROCESS
  • OUR COMPANY

Flanged gate valves to BS

Manufactured in accordance to the highest standards meeting all requirements and accordingly suitable for a wide range of applications.
Commonly available in DZR brass, Bronze, Cast Iron and other materials also to suit your needs.
Generally used in sectors such as heating, air-conditioning, water, sanitary systems, oil pipelines, gasoline networks, saturated steam and generally with any non-corrosive liquid.

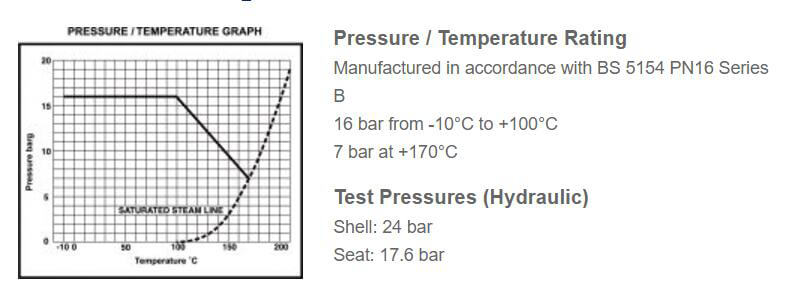

Nominal Pressure PN16
Operating Temperature -10 to +150deg C

Rising stem, Solid wedge, Screw-over bonnet, Outside screw and yoke, Class 125 threaded female end connections, Dezincification resistant






Part Material BS ASTM
AQUA MIGEN is located the YuHuan which the hometown of civil ball valve. The AQUA MIGEN is formed by China Machinery Engineering SuZhou Co.,Ltd. The technical engineer 31 person and executive staff 33 person. The major business is produce, Research and Development ball valve. Companies continue to adhere to the pursuit of technological innovation to improve quality as the goal. Continuously improve product technology development, but also committed to the development of lead-free products at home and abroad, the pursuit of human health. Environmental Energy-saving development of the cause. Provide cost-effective valve.
