Bronze globe valve BS 5154 PN32 Series B, metal disk Bronze globe valve BS 5154 PN32 Series B, metal disk


1 1/2" Female (NPT) National Pipe Threads x 1 1/2" Female (NPT) National Pipe Threads UL Listed

Uses: Used in Alarm Valve or Dry Pipe Valve Trim">

1 1/2" Heavy Duty Brass Globe Valve with Rubber Seat

1 1/2" Female (NPT) National Pipe Threads x 1 1/2" Female (NPT) National Pipe Threads UL Listed

Uses: Used in Alarm Valve or Dry Pipe Valve Trim

Quantity:
Share this:
  • Model: CMEC-3010
  • Brand: AQUA-MIGEN
  • Code: 8481804090
  • Product Description
  • Product description

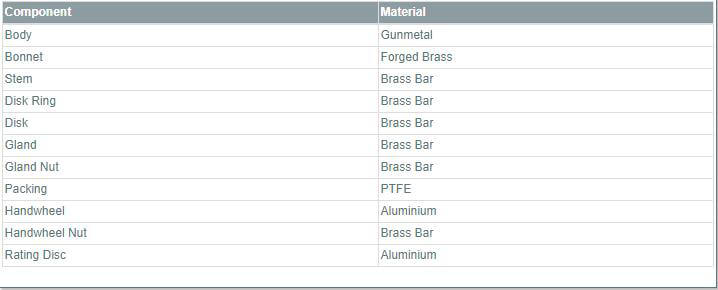

  • Component
  • Pressure and Temperature
  • FAQ

Description

Multi-purpose shut-off valves for use in low pressure, domestic potable water systems

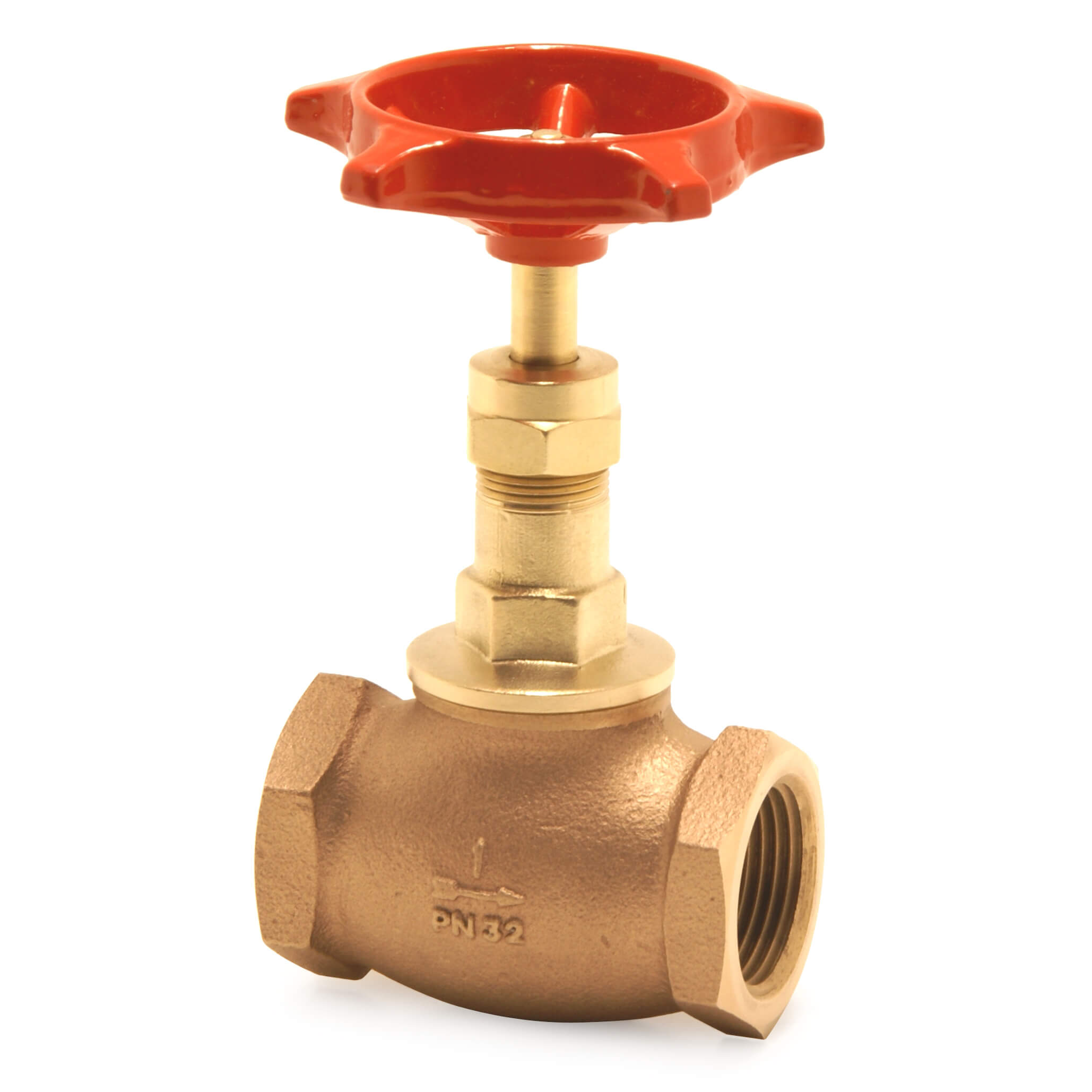

Bronze globe valve BS 5154 PN32 Series B

An economic bronze screw lift globe valve with a PTFE valve disc, ideally suited for cost effective isolation of a variety of fluids.



Size : ⅜” (10mm) to 2″ (50mm)

Connection : BSP

Fluids : Air – Inert Gas – Oil – Steam – Water

Operation : Handwheel


This class Migen Valve 590T series inline bronze globe valve has a union bonnet, rising stem, Teflon disc, and female National Pipe Taper (NPT) threads on both ends, and is used to control flow (throttling) in a pipeline or water plumbing system. The valve body is constructed of American Society for Testing and Material (ASTM) B62 bronze and the disc is made of Teflon, both for strength and corrosion resistance. This valve has maximum pressure ratings of 300 pounds per square inch (gauge) (psig) for water, oil, and gas (WOG) and 150 psig for steam working pressure (SWP). It has a union bonnet for simplified inspection of the valve interior, and female NPT threads on both ends for connecting to male threaded pipes. This class 150 valve meets standard Manufacturers Standardization Society (MSS) SP-80 for quality assurance. Class is a standard relating to tolerance, construction, dimension, and wall thickness, but it is not a direct measurement of maximum working pressure. This rising stem globe valve is for use in various pipeline or water plumbing systems.



Globe valves control flow rates in a piping system by the lift of a vertical stem and disk, which must be turned to open and close the valve. A seated disc extends into the center of the valve to act as a plug to restrict or open the flow path, depending on how tightly the valve stem is turned. The stem on globe valves can be either rising (moves up as the valve opens) to indicate if the flow is on or off, or non-rising (stem height remains constant when the valve is either open or closed) for use in small spaces. Globe valves are used in various water, gas, air, and steam piping systems that require frequent throttling operations.

CMEC manual and actuated valves, controls, and control accessories. meets International Organization for Standardization (ISO) 9001:2008 and 14001:2004 standards.



Description

Minimum Operating
Pressure (bar)
Maximum Cold Working
Pressure (bar)
Maximum Hot
Working Pressure (bar)
 Globe valve
1.Is it in stock

Pls contact us and it according to your detail products model

2.Can you speed up delivery?

If ou produce line is not very busy we can speed up delivery for  you

3.Can you supply the sample ?

We can supply the sample if we have stock

4.Do you have agent ?

We haven't agent ,but we have sales central in Spain and Germany

5.Can we to be your agent ?

It according to your purchase qty per year

6.The produce process

Inquire—offer—Invoice—drawing confirm—mass production—SGS Test report confirm–Delivery
