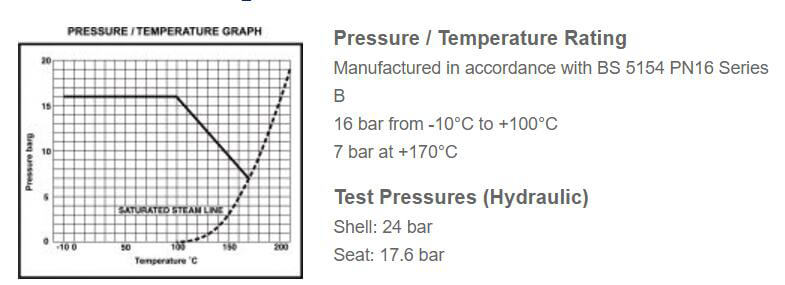

Nominal Pressure PN16
Operating Temperature -10 to +150deg C
Conforming to:
BS21 / NPT Threading

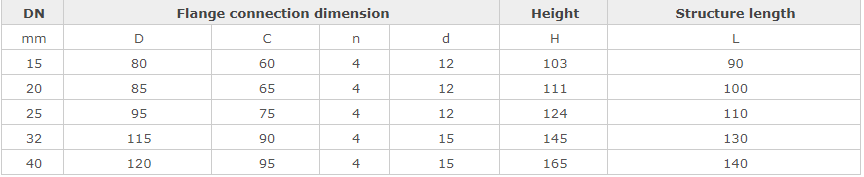

BS EN 1092 / PN16 – Flange drilling
Class ANSI 150

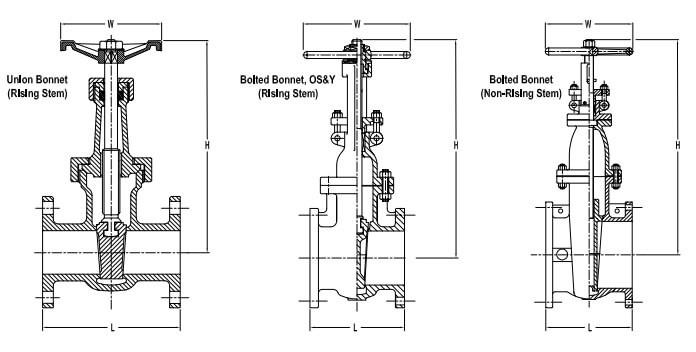

Types: Rising Stem ,Non Rising Stem
Description
Gate valves are multi-purpose bi-directional shutoff valves for commercial and industrial applications. To make your selection easier, CMEC offers specification and submittal assistance. Get the assurance of the CMEC warranty, along with superior customer service expertise. Spec a job, find your distributor, get catalogs and submittals, place and track your order.
Valve pressure rating 200 psi/14 bar non-shock cold working pressure, Full port (1/4" to 2"), Conventional port (2-1/4" to 4"), Brass body, Solder end connections, Use in U.S. drinking water applications is prohibited after January 3, 2014
Size range 1/4" to 4"
