Bronze Ball Valve with Stainless Steel 316 Ball and Stem Solder End Bronze Ball Valve with Stainless Steel 316 Ball and Stem Solder End

Bronze ball valve
Specification:
1.pressure: 150LB 200LB 300LB
2.Media: sea water, oil, liquefied gas,steam
3.Temperature: water below 120 degree C, oil ,gas ,steam below 220 degree C
4.Tread connection Std: (G ,Rc ,RP) BSP, BSPT ,NPT

Quantity:
Share this:
  • Model: CMECBV3
  • Brand: AQUA-MIGEN
  • Code: 8481804090
  • Product Description
  • SPECIFICATION

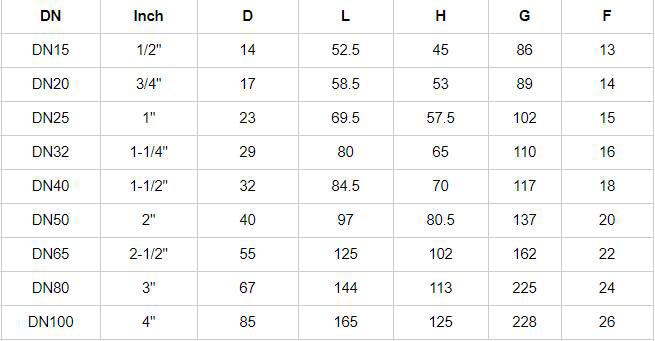

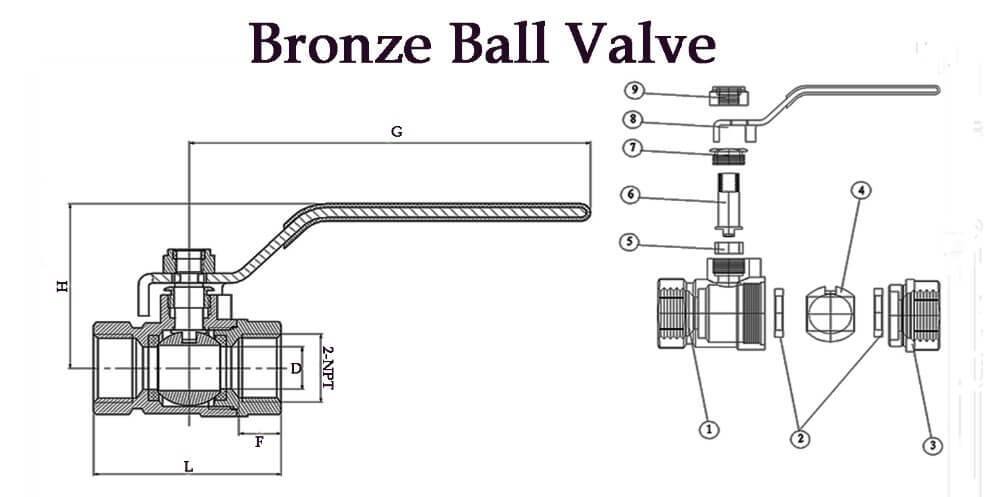

  • Main Dimension
  • Product Details
  • Our company

Description


Bronze ball valves for use in commercial and light industrial applications. Typical services include; hot and cold domestic water, HVAC, low pressure steam, compressed air, LP gas, natural gas

Blowout-proof stem, Chrome plated brass ball and silicon bronze stem, Standard lever handle, also with Stainless Steel 316 Ball and Stem Solder End

Bronze Ball Valve with Stainless Steel 316 Ball and Stem Solder End
Two Piece Quarter-Turn Bronze Ball Valves
1.CONNECTION TYPE: FXF

2.COMMON BRASS MATERIAL Hpb57-3

3.IRON NUT

4.SURFACE TREATMENT:SAND-BLASTING AND NATURE COLOR IN BODY&THREAD

5.BRAND:AQUA-MIGEN OR OEM

6.THREAD:G BSP NTP

7.HANDLE:IRON HANDLE THROME PLATED ANY COLOR WITH PVC COVER

8.INSET BALL:BRASS

9 PTFE SEATED

10STEM:BRASS

11.FULL PORT

12.PN:16

13.PACKING:PTFE

14.BRASS GLAND NUT ,O-RING

15.long thread






Two Piece Quarter-Turn Bronze Ball Valves Specification
