Brass Safety Valve for Water Heater Brass Safety Valve for Water Heater

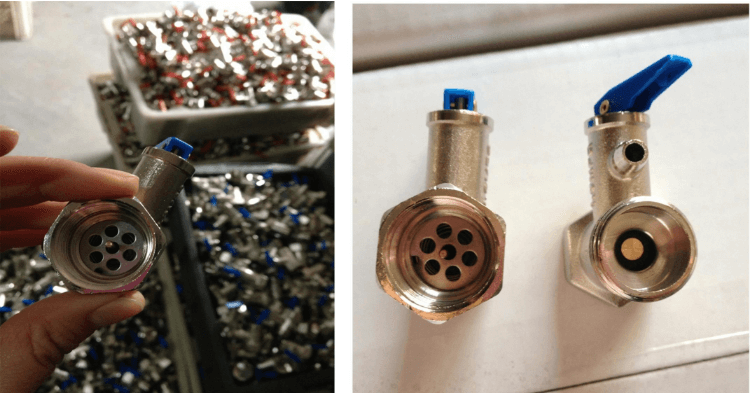

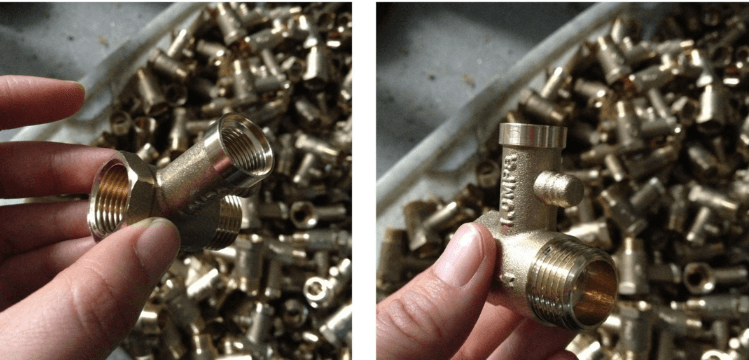

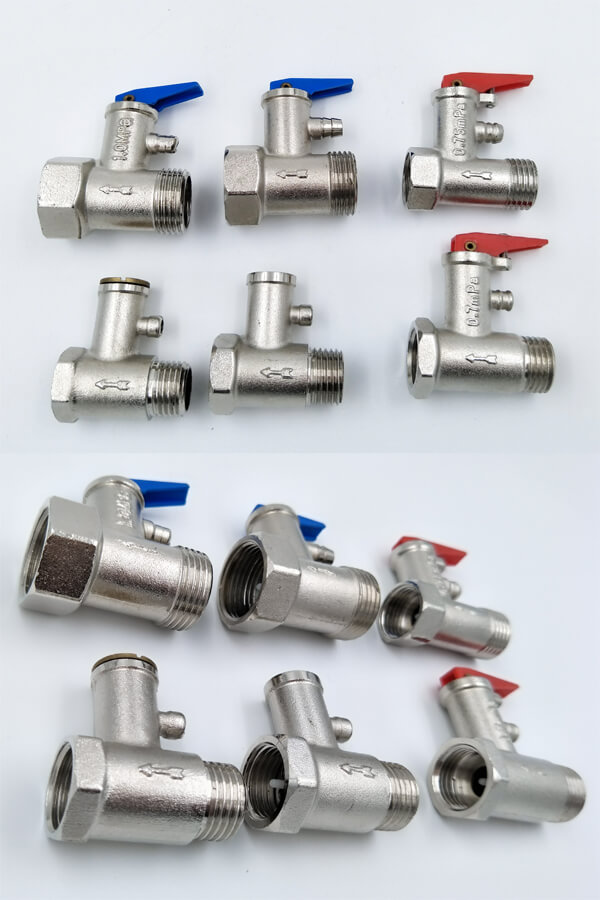

Brass safety valve
brass body, nickel-plated
size:1/2"

Quantity:
Share this:
  • Model: CMECSV1
  • Brand: AQUA-MIGEN
  • Code: 8481804090
  • Product Description

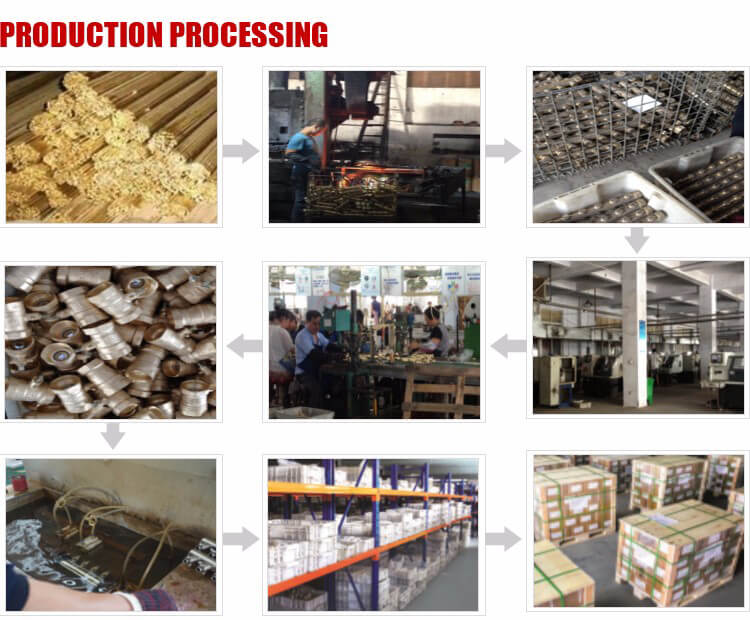

  • Product Process
  • Product Pic
  • Product Description
  • Main Service

Description

safety valve is a valve that acts as a fail-safe in a thermal-hydraulics plant. An example of safety valve is a pressure relief valve(PRV), which automatically releases a substance from a boilerpressure vessel, or other system, when the pressure or temperature exceeds preset limits. Pilot-operated relief valves are a specialized type of pressure safety valve. A leak tight, lower cost, single emergency use option would be a rupture disk.

  1. Working pressure: 3-12 Bar;

  2. Relief Pressure: 7 Bar, 8Bar & 10 Bar can be optional as requested; the maximum tolerance of the relief pressure is within 0.5Bar;

  3. Working medium: Water. Mainly for domestic using water heating tank;

  4. Working temperature: 0-110℃;

  5. Safety anti-water back flow function to guarantee the properly working of the water heating tank;

  6. Water flow inlet pressure: 1 Bar; water flow anti-back pressure: 3 Bar;

  7. High quality stainless steel spring guarantees the better working performance and also the long using life;

  8. Locking handle design to avoild the improperly operation;

  9. Thread: M*F according to ISO228(BS2779) standard;

  10. Nickle plated surface makes nice-looking and also anti-corrosion, laser marking relief pressure and date on the body.





 1/ Rapid response:

      Any of your questions will be answered within 24 hours.



2/ Quality Control:

      All products must through double checks during every manufacturing process.

      Test reports are available for each delivery.



3/ Guarantee:

      Requirement of customers & quality of products will be full guaranteed.

      Every defective product during the transportation can be compensated in the next order.



4/ Samples:

      Samples are available. The samples shipment charge will be paid by your side
