3 piece stainless steel ball valve 3 piece stainless steel ball valve

3PC Ball Valve
Material:304, 316, 1.4308, 1.4408
Model:3PC
Connetion:Thread
Medium:Water, Oil, Gas

Quantity:
Share this:
  • Model: CMECSS25
  • Brand: AQUA-MIGEN
  • Code: 8481804090
  • Product Description

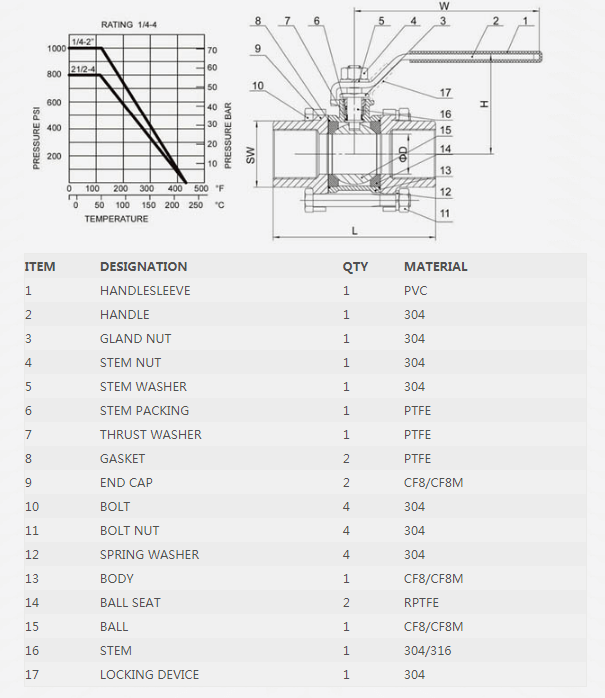

  • MATERIAL LIST
  • DIMENSIONS (mm)
  • FAQ
  • Our company



3pc stainless steel ball valve

FEATURES
1000PSI/PN63 Full Port
Investment Casting Blow-out-Proof Stem
Anti-Static device (option) PED97/23/PE(CE0036) Approved
Casting Approved AD2000-W0 Inspection Testing:API598,EN12266
Anti-Static device (option) Length Conform To DIN3202/4-M3
Thread:ASME B1.20.1 BS21.DIN2999/259,ISO228-1,JIS B 0203,ISO7/1




1.Is it in stock

Pls contact us and it according to your detail products model

2.Can you speed up delivery?

If ou produce line is not very busy we can speed up delivery for  you

3.Can you supply the sample ?

We can supply the sample if we have stock

4.Do you have agent ?

We haven't agent ,but we have sales central in Spain and Germany

5.Can we to be your agent ?

It according to your purchase qty per year

6.The produce process

Inquire—offer—Invoice—drawing confirm—mass production—SGS Test report confirm–Delivery
AQUA MIGEN is located the YuHuan which the hometown of civil ball valve. The AQUA MIGEN is formed by China Machinery Engineering SuZhou Co.,Ltd. The technical engineer 31 person and executive staff 33 person. The major business is produce, Research and Development ball valve. Companies continue to adhere to the pursuit of technological innovation to improve quality as the goal. Continuously improve product technology development, but also committed to the development of lead-free products at home and abroad, the pursuit of human health. Environmental Energy-saving development of the cause. Provide cost-effective valve.
