Product Category

Full Port Threaded Bronze Ball Valve

Bronze ball valve
Specification:
1.pressure: 150LB 200LB 300LB
2.Media: sea water, oil, liquefied gas,steam
3.Temperature: water below 120 degree C, oil ,gas ,steam below 220 degree C
4.Tread connection Std: (G ,Rc ,RP) BSP, BSPT ,NPT

Quantity:

Share this:

Inquire Add To Basket

Model: CMECBV7
Brand: AQUA-MIGEN
Code: 8481804090

Product Description

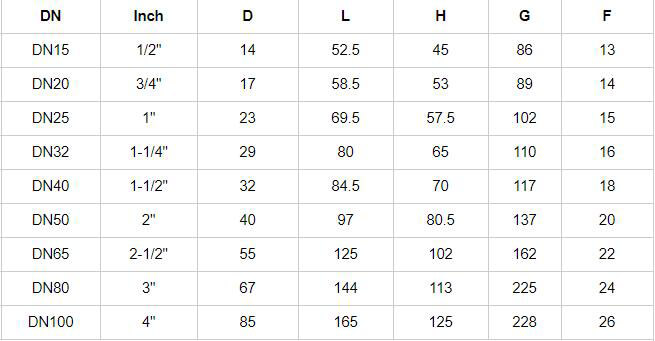

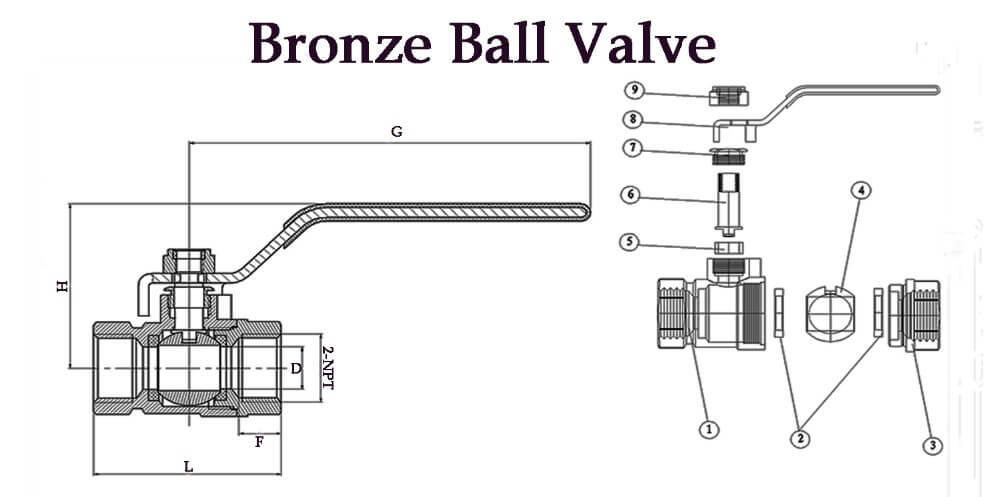

Main Dimension
Product Details
Our company
SPECIFICATION

Description

Bronze ball valves for use in commercial and light industrial applications. Typical services include; hot and cold domestic water,

Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure, Maximum service temperature 250°F, Two-piece body, Full port, Silicon bronze stem, Reinforced PTFE seat rings, Press x press female end connections, Press leak-detection feature, Multiple handle options.Full Port, Threaded Connection, 600 WOG Bronze Ball Valves



 Two Piece Quarter-Turn Bronze Ball Valves Specification

AQUA MIGEN is located the YuHuan which the hometown of civil ball valve. The AQUA MIGEN is formed by China Machinery Engineering SuZhou Co.,Ltd. The technical engineer 31 person and executive staff 33 person. The major business is produce, Research and Development ball valve. Companies continue to adhere to the pursuit of technological innovation to improve quality as the goal. Continuously improve product technology development, but also committed to the development of lead-free products at home and abroad, the pursuit of human health. Environmental Energy-saving development of the cause. Provide cost-effective valve.

2 Piece, Full Port, Threaded Connection, 600 WOG Bronze Ball Valves
Two Piece Quarter-Turn Bronze Ball Valves
1.CONNECTION TYPE: FXF

2.COMMON BRASS MATERIAL Hpb57-3

3.IRON NUT

4.SURFACE TREATMENT:SAND-BLASTING AND NATURE COLOR IN BODY&THREAD

5.BRAND:AQUA-MIGEN OR OEM

6.THREAD:G BSP NTP

7.HANDLE:IRON HANDLE THROME PLATED ANY COLOR WITH PVC COVER

8.INSET BALL:BRASS

9 PTFE SEATED

10STEM:BRASS

11.FULL PORT

12.PN:16

13.PACKING:PTFE

14.BRASS GLAND NUT ,O-RING

15.long thread
