Product Category

BRASS GATE VALVE PN16

Feature:
1. Non-ring stem.
2. Screwed in bonnet.
3. Connect ends comply to
NPT (ANSI BI.20.1), BSPT (BS21.0), BSPF.
4. Working pressure PN20.
Test pressure and Temperature
1.Hydrostatic sheel Test : 35kgf/cm2
2.Hydrostatic seat Test : 21kgf/cm2
3.Preumatic seat Test : 6kgf/cm2
4. Temperature Max:178∘Ｃ

Quantity:

BRASS GATE VALVE PN16

Suitable for domestic water services, heating, air-conditioning plants.
Female/female threads.
Handle in steel.
Body in brass.
Minimum and maximum working temperatures: 0°C, 150°C in absence of steam.
Threads: ISO228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

Available also with NPT thread in the sizes 2”1/2, 3” and 4”.

Work Temperature

Product Name

1.The Production follow the valve standrad strictly

2.Toyota lean Production line used by Aqua aim to improve the quality

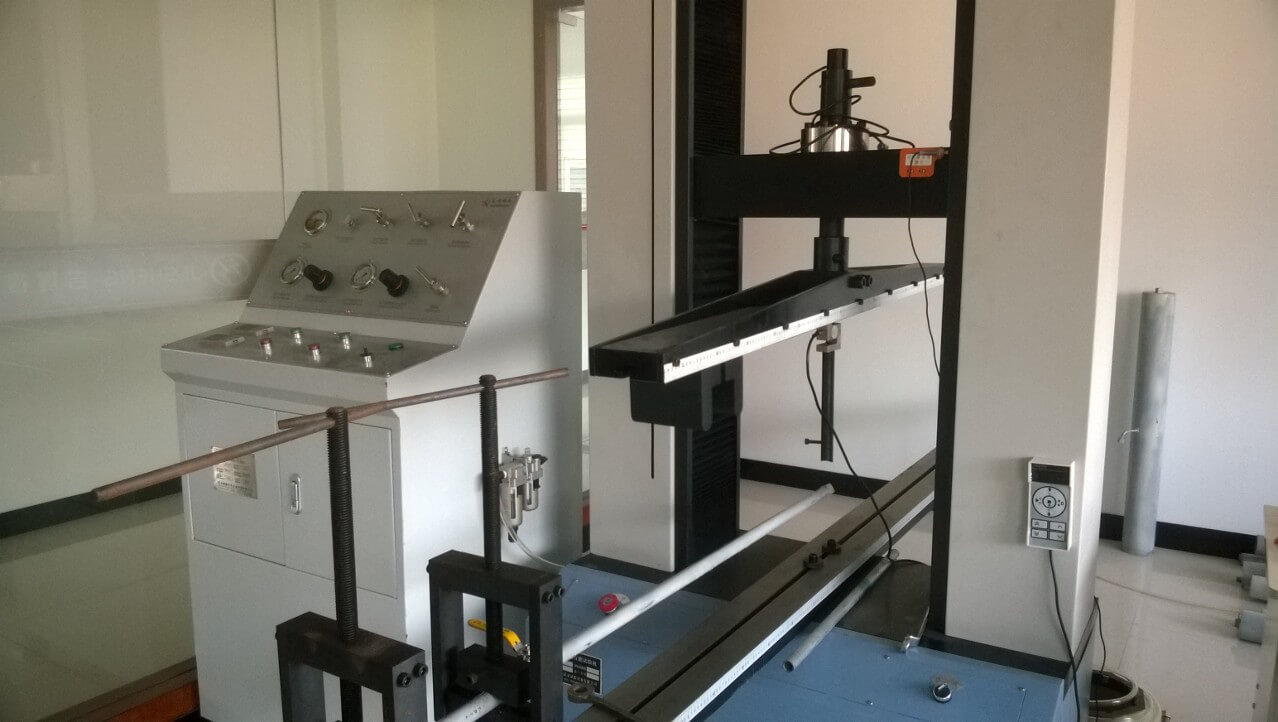

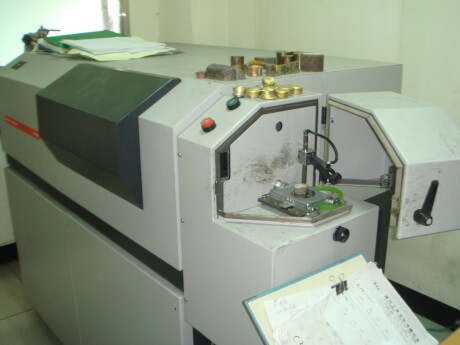

3.We test each piece valve during the production ,quality control in forge ,machine ,assemble and all the process in order to guarantee the quality

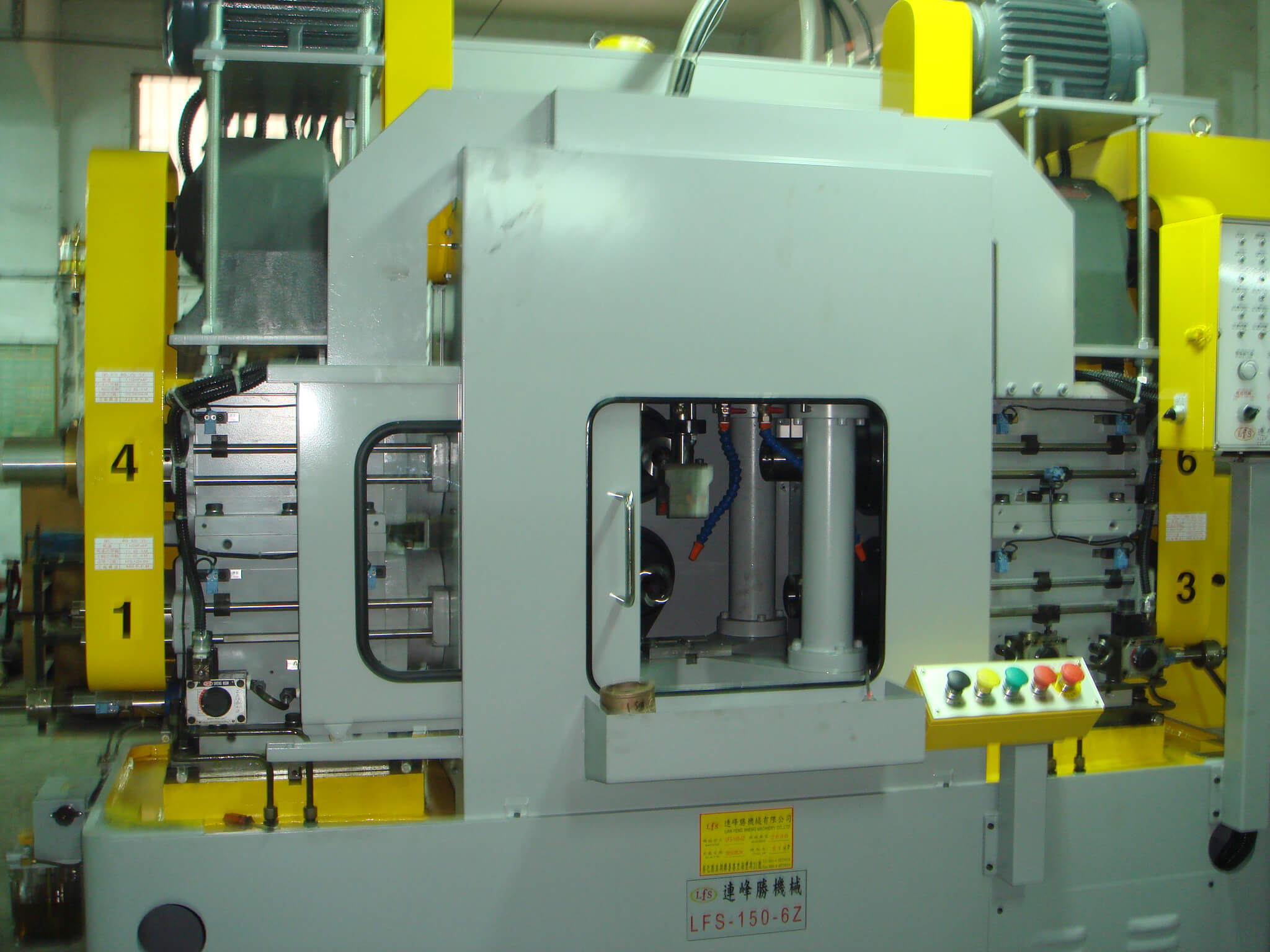

1.Automactic Forging machine

2.Constant temperature

3.100% Anneal

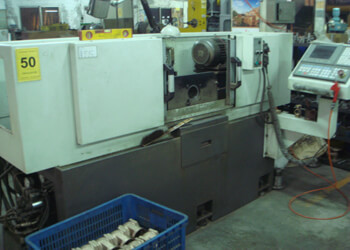

We replace automatic machine to most old type of machine so as to make the products better

1.Is it in stock

Pls contact us and it according to your detail products model

2.Can you speed up delivery?

If ou produce line is not very busy we can speed up delivery for you

3.Can you supply the sample ?

We can supply the sample if we have stock

4.Do you have agent ?

We haven't agent ,but we have sales central in Spain and Germany

5.Can we to be your agent ?

It according to your purchase qty per year

6.The produce process

Inquire—offer—Invoice—drawing confirm—mass production—SGS Test report confirm–Delivery
