Blue Hnadle Forged Male To Male Brass Mini Ball Valves in Size 3/8" Manufacturers Blue Hnadle Forged Male To Male Brass Mini Ball Valves in Size 3/8" Manufacturers

Sizes 1/4" to 1", Working Pressure 1000 PSI (WOG), ISO 9001 Manufacturer

Quantity:
Share this:
  • Model: CMEC-4013
  • Brand: AQUA-Valve
  • Code: 8481804090
  • Product Description

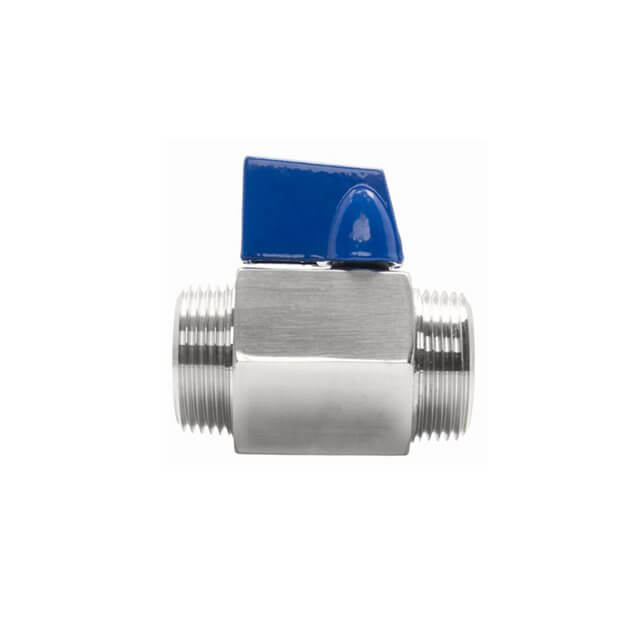

Blue Hnadle Forged Male To Male Brass Mini Ball Valves in Size 3/8" Manufacturers

Description

Brass Mini Ball Valves (or miniature ball valves) are made for use in confined spaces. Mini ball valve has a lever handle for on/off manual control, and full port flow for higher operating efficiency than standard port. They are primarily used in air, gas, liquid, and steam applications. With a pressure rating of 1000 PSI (water, oil or gas) and made out of brass 57-3, this line of valves outshines the rest of the mini ball valves available on this site. The valves are available in Female to Female, Male to Female, and Male to Male connection types, and in sizes from 1/4" to 1".This inline mini ball valve has male threads for connecting female threaded pipes going in the same direction.


SS 316 (CF8M) body and ball – for extra strength and corrosion resistance

Temperature range: -30°F to 325°F

Working pressure of 1000 psi

Double seal system allows flow can go in either direction

Heavy duty Zinc Alloy handles (painted blue)

Fast 1/4 turn open or closed operation

Each valve individually tested for maximum safety

NPT connections (FxF, FxM and MxM)



Feature

Designation Material
Body Chrome Nickel Plated Brass 57-3
Ball  brass 57-3
Valve Stem SS 304/ SS 316 Brass 57-3
Ball Seat  RPTFE
Screw SS 304 Brass 57-3
Handle Aluminium Alloy
O-Ring PTFE


Detail

Product Name Brass mini Ball Valve
Connection Thread NPT. BSP. BSPT
Surface Nature Color / Chrome-plated / Nickel-plated
Size 1/2",  3/4",  1",  1-1/4",  1-1/2",  2"
Material Brass
Field of Application Water, Oil etc
Working Pressure 0—1.0MPa | 0—150psi
Guarantee Time 10 Years
Work Temperature 0—60°C | 32~140°F
Service 7*24 Hours
Insurance $10 Million
Package Standard export package or Customized
Payment L/C,D/P,T/T,Western Union,Credit Card
Delivery Ningbo Port,28 days after payment
Connection End Female Thread
Handle Color Blue
Valve guarantee 10000 Times 10 Years
Function Air, Oil, Water(no freezing)





Quality Control

  1. The Production follow the valve standrad strictly ;

  2. Toyota lean Production line used by Aqua aim to improve the quality ;

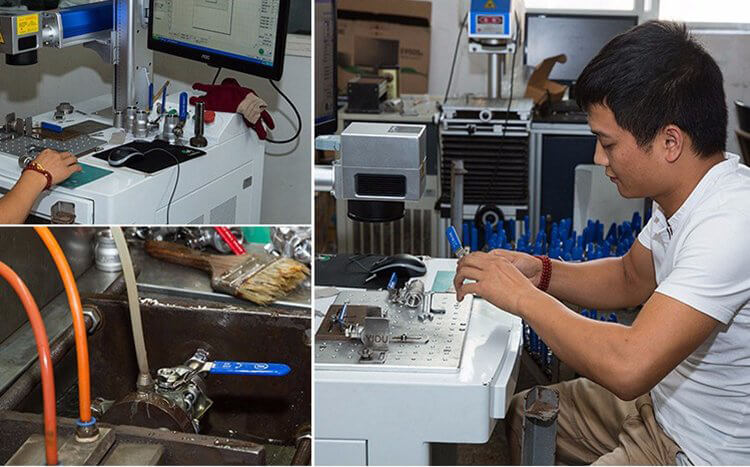

  3. We test each piece valve during the production ,quality control in forge ,machine ,assemble and all the process in order to guarantee the quality;



Forge Process

  1. Automactic Forging machine

  2. Constant temperature

  3. 100% Anneal

  4. We replace automatic machine to most  old type of machine so as to make the products better;

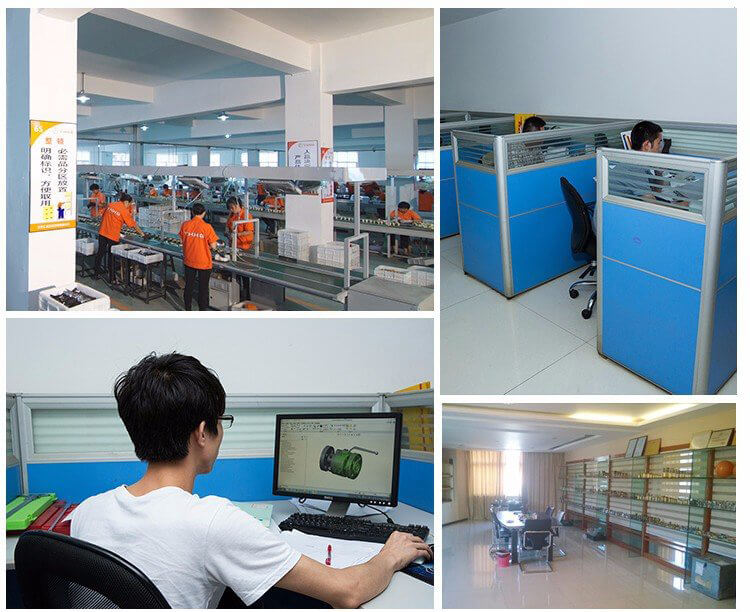

Company profile

CMEC Aqua Valve Machinery Co.,LTD is located in Yuhuan City which is the hometown of civil ball valve, Zhejiang Province, China, which is established in 1987. We specialized in manufacturing brass & bronze valves and water plumbing. Our major products are brass ball valves, angle valves, gate valves, bibcocks, drinking taps, fittings, water meter accessories and so on.

We are professional supplier for ball valves, including 1/4’’ to 4’’, 1/2/3 piece full port/ half port ball valves with competitive price and good quality in Europe, south America, Asia, etc. We are proud that we have one group professional technologist team. We could supply carious valves in material of brass & bronze, such as dzr, cw614, cw617, c83600,c84400, LG2, no lead brass, which are suitable for Europe and the USA market. Our daily production of valves are up to 15000PCS, forging equipment ability up to the province's first, the annual production of valves are 5000000PCS and sale to the globe world. We have 25 products patent and have strong R & D capabilities of new product and QC system. We have obtained ISO9001, CE certificate. We also have ability to design and OEM according to clients’ requirement.

We are always insisting on our principle ”customer first, quality first, aqua valve is your best partner ”. Creating a world environmental ecology is our whole life responsibilities.



FAQ

1.Is it in stock?

Pls contact us and it according to your detail products model

2.Can you speed up delivery?

If ou produce line is not very busy we can speed up delivery for  you

3.Can you supply the sample ?

We can supply the sample if we have stock

4.Do you have agent ?

We haven't agent ,but we have sales central in Spain and Germany

5.Can we to be your agent ?

It according to your purchase qty per year

6.The produce process

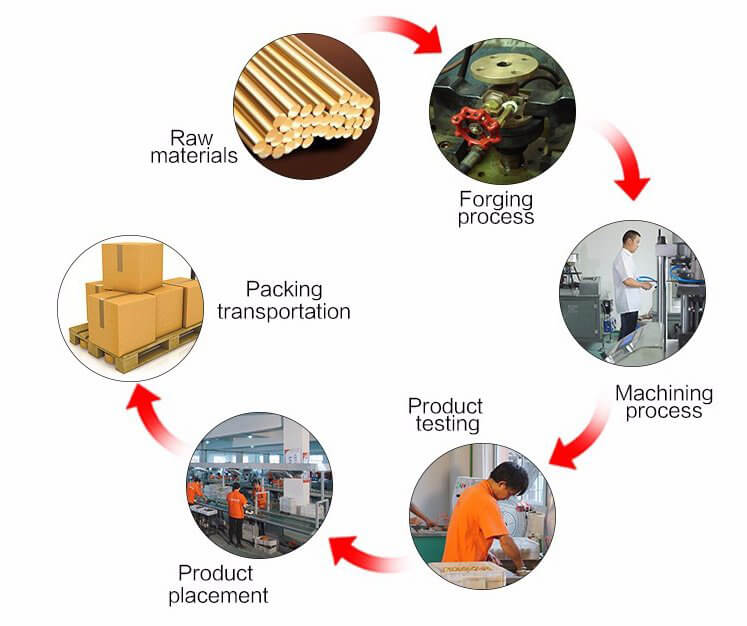

Inquire—offer—Invoice—drawing confirm—mass production—SGS Test report confirm–Delivery
