Ball Valve - Lead-Free* Brass, Two-Piece, Full Port, NPT x NPT, Locking Lever Handle  Ball Valve - Lead-Free* Brass, Two-Piece, Full Port, NPT x NPT, Locking Lever Handle

For control or air, water, oil and gas in hose or pipe lines.

-Rated to 600 PSI WOG; 150 PSI WSP.

-Forged brass bodies.

-Blow-out proof stems.

-PTFE seats, seals and thrust washers.

-Chrome plated brass balls and plated steel handles.

-Max temp 366ºF.

-NSF61 Approved.

Quantity:
Share this:
  • Model: CMECBV3
  • Brand: AQUA-MIGEN
  • Code: 8481804090
  • Product Description

Product Description

Description

Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure (1/4" to 2"), Valve pressure rating 400 psi/27.6 bar non-shock cold working pressure (2-1/2" to 4"), Full port, Blowout-proof stem, Standard lever handle, Threaded end connections

Feature

Working pressure of 400 psi; 150 Saturated Steam
Chrome-plated brass ball
Working temperature: -4°F to 300°F
Suitable for full range of liquids and gas (WOG)
Fast 1/4 turn open or closed operation
Flow can go in either direction
Each valve individually tested
Blowout-proof stem
NPT Threaded ends to ANSI B1.20.1


Description Material
Body Brass
Ball  Chrome-plated brass
Stem PTFE
Gaskets PTFE
Handle Plated Steel
Handle Cover Rubber


Detail

Product Name Brass Ball Valve
Connection Thread NPT. BSP. BSPT
Surface Nature Color / Chrome-plated / Nickel-plated
Size 1/2",  3/4",  1",  1-1/4",  1-1/2",  2"
Material Brass
Field of Application Water, Oil etc
Working Pressure 16Bar/ 232Psi
Guarantee Time 10 Years
Work Temperature -20°C to 120°C
Service 7*24 Hours
Insurance $10 Million
Package Standard export package or Customized
Payment L/C,D/P,T/T,Western Union,Credit Card
Delivery Ningbo Port,28 days after payment
Connection End Female Thread
Handle Color Red
Valve guarantee 10000 Times 10 Years
Function Kitchen, Home, Commercial, Garden and General

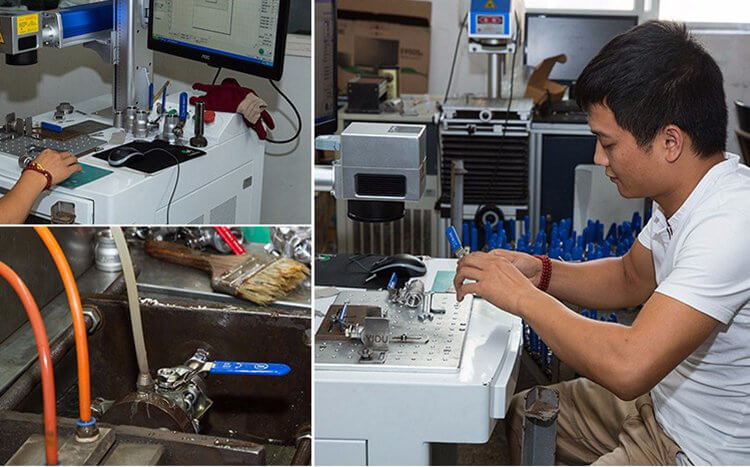

Quality Control

  1. The Production follow the valve standrad strictly ;

  2. Toyota lean Production line used by Aqua aim to improve the quality ;

  3. We test each piece valve during the production ,quality control in forge ,machine ,assemble and all the process in order to guarantee the quality;



Forge Process

  1. Automactic Forging machine

  2. Constant temperature

  3. 100% Anneal

  4. We replace automatic machine to most  old type of machine so as to make the products better;

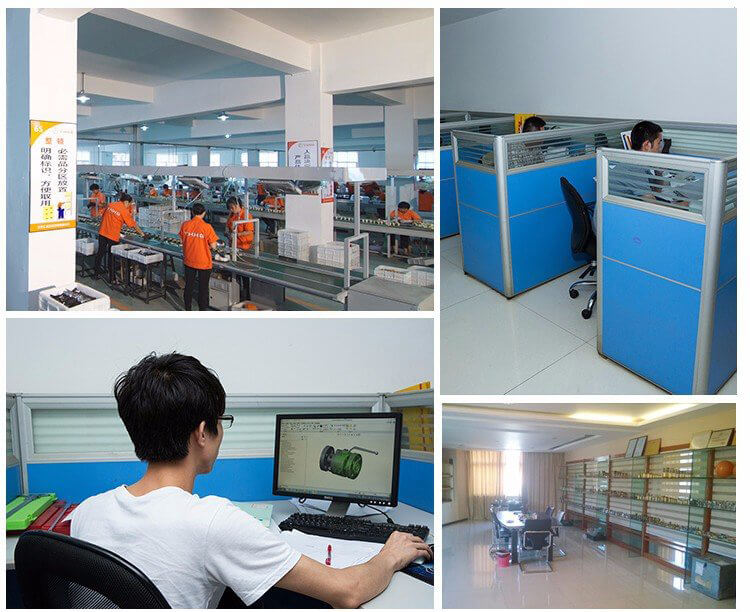

Company profile



FAQ

1.Is it in stock?

Pls contact us and it according to your detail products model

2.Can you speed up delivery?

If ou produce line is not very busy we can speed up delivery for  you

3.Can you supply the sample ?

We can supply the sample if we have stock

4.Do you have agent ?

We haven't agent ,but we have sales central in Spain and Germany

5.Can we to be your agent ?

It according to your purchase qty per year

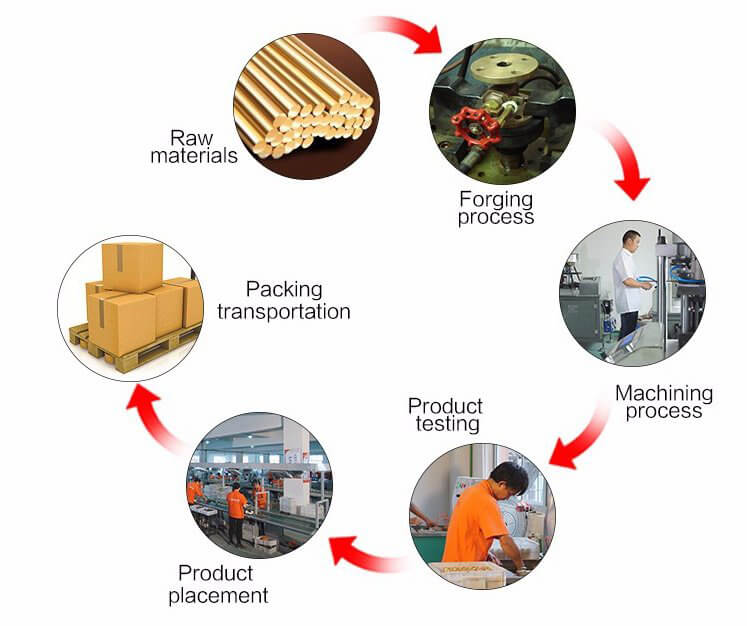

6.The produce process

Inquire—offer—Invoice—drawing confirm—mass production—SGS Test report confirm–Delivery
